EazyPod

£549.95
EazyPod Logo

Easy to use filter system


A compact member of the Nexus family, the Eazy Pod is a mechanical and biological filter system for ponds up to 10,000 litres.
The EasyPod utilises 18 litres of static K1 Micro, which provides enhanced biological benefits, even when using the Easy Pod solely as a mechanical waste filter.
Available in Grey or Granite Green colours.



Overview

A compact member of the Nexus family, the EazyPod is a mechanical and biological filter system for ponds up to 10,000 litres. The EazyPod utilises 18 litres of static K1 Micro, which provides enhanced biological benefits, even when using the EazyPod solely as a mechanical waste filter. Also available as EazyPodAir models, which come supplied with AirPump70 Kit.

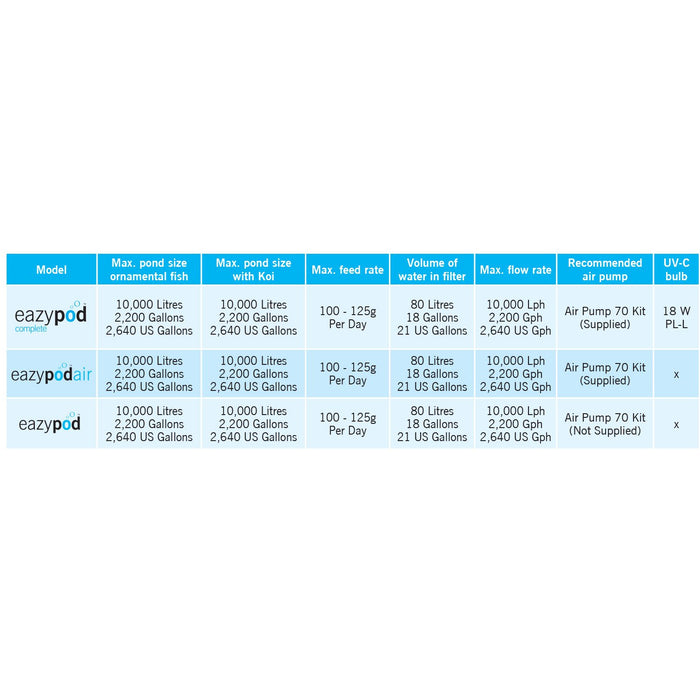

Specifications

Evolution Aqua EasyPod Specifications

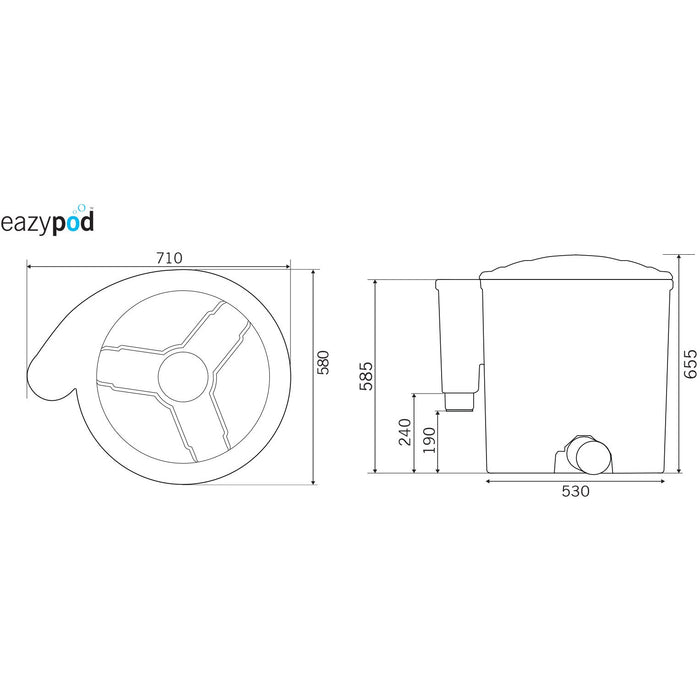

Dimensions

Easy pod Dimensions

How the EazyPod works

Water from the pond enters the EazyPod via the inlet and then flows around the circumference of the outer chamber of the EazyPod, passing through the stainless steel grill causing many of the larger solids to be filtered out and settle in the base of the outer chamber. This is the first stage of mechanical filtration. As water enters the central chamber, through the stainless steel grill, the fine smaller solids become trapped in the mass of K1 Micro. Bio-films build up on the protected surface area within each piece of media, allowing biological filtration to take place. After passing through the K1 Micro, the clean water then rises and overflows into the inner return pipe and flows back to the pond via the outlet. The EazyPod is incredibly simple to clean. The connected air pump is used during the cleaning cycle to agitate the K1 Micro to free up any debris and waste that has built up within the filter. A 70 litre per minute air pump is recommended for use during the cycle cleaning. *Only EazyPodAir and EazyPod Complete models are supplied with a 70 litre per minute air pump and accessory kit.

How an Easy Pod works

Installing the EazyPod

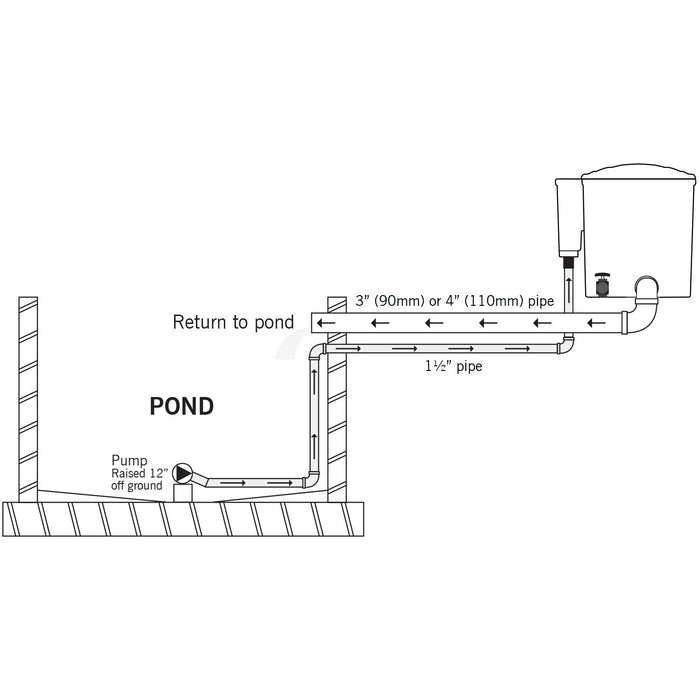

PUMP-FED INSTALLATION


By this we mean that if your pump is going to be used to supply the water to the filter, and the filtered water then returns back into your pond via gravity, i.e. down a waterfall, or through a large diameter pipe, this is referred to as PUMP FED (i.e. the water is fed to the filter using a pump).

Easy Pod Pump Fed Installation

GRAVITY-FED INSTALLATION

*User modification is required on the EazyPod to enable Gravity Fed installation. By this we mean that your pump is going to be used to return the filtered water to the pond and therefore your filter will be supplied by gravity via a larger diameter pipe. In this situation the water level in the filter will be at the same level as the pond.

Gravity fed Easypod installation
