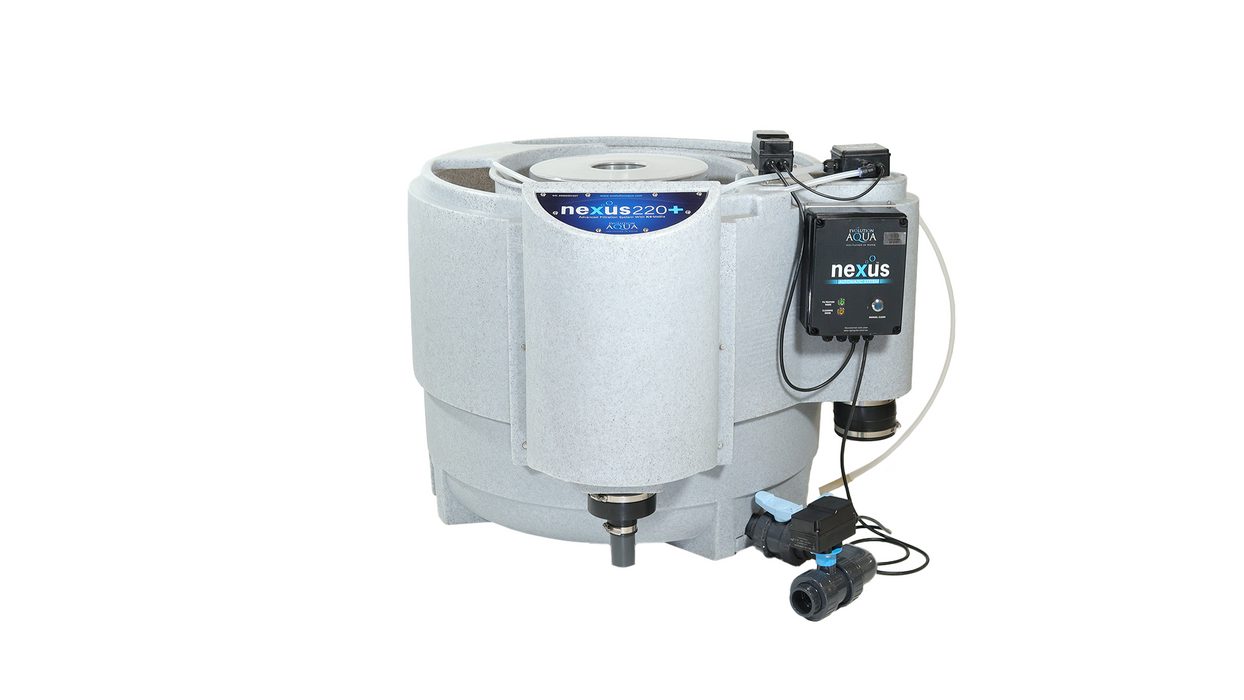

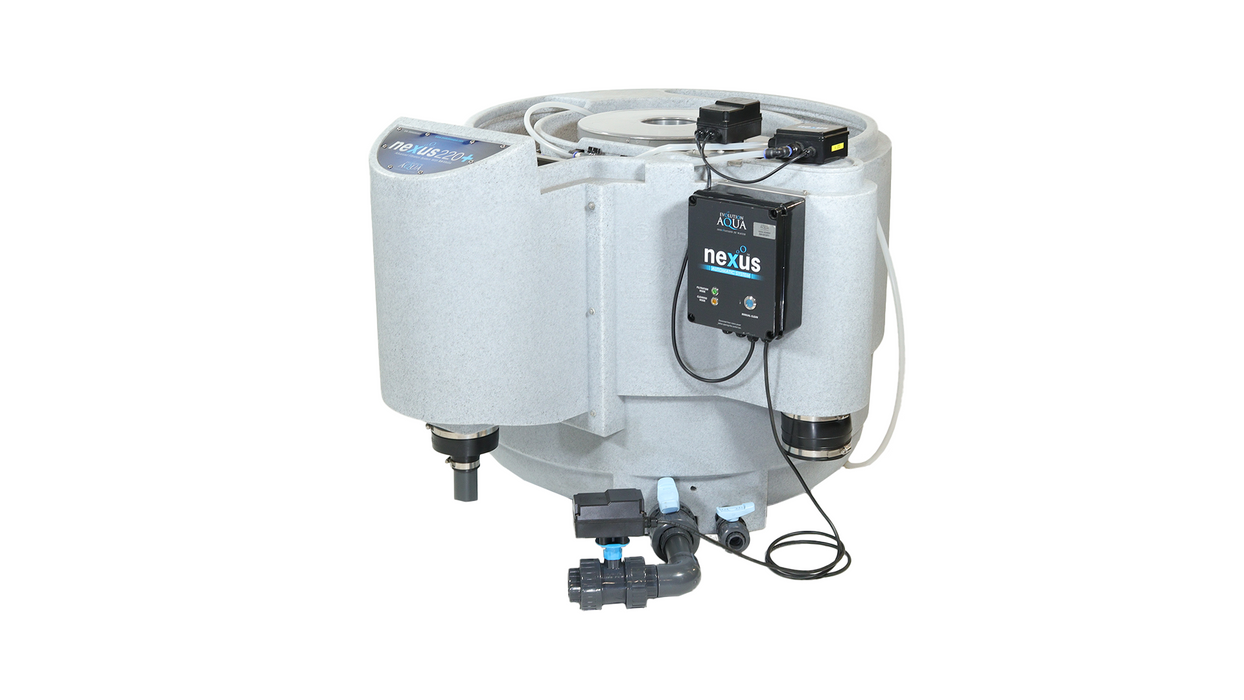

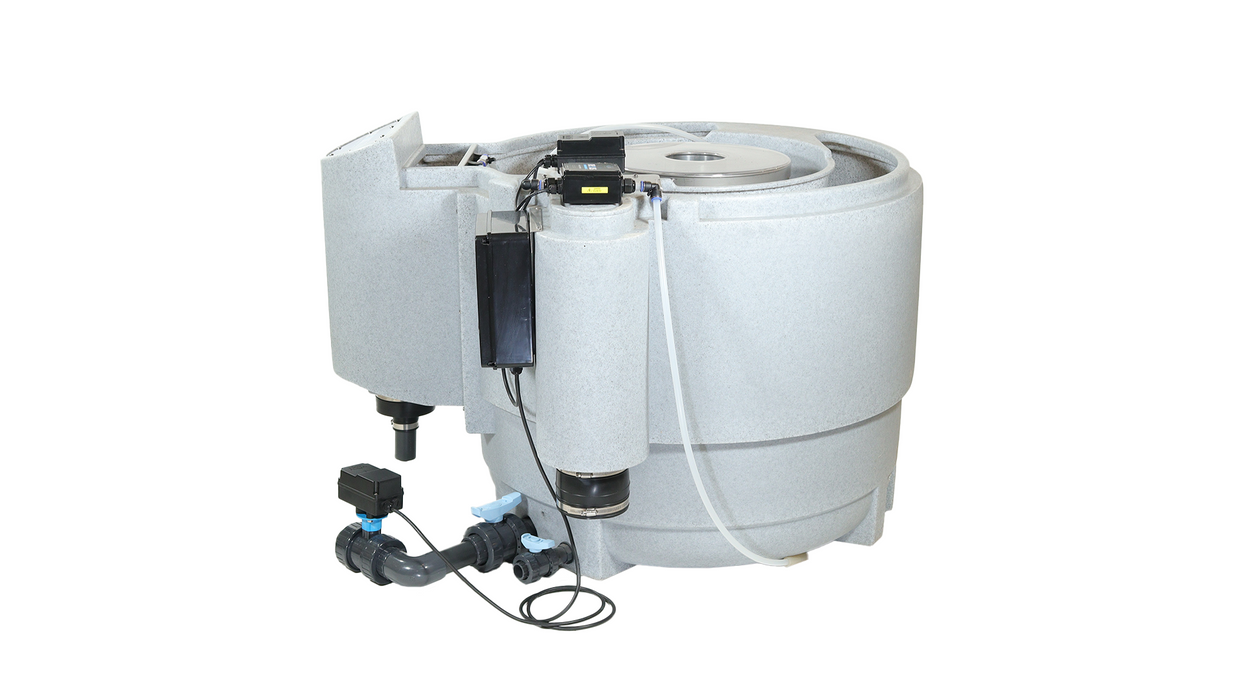

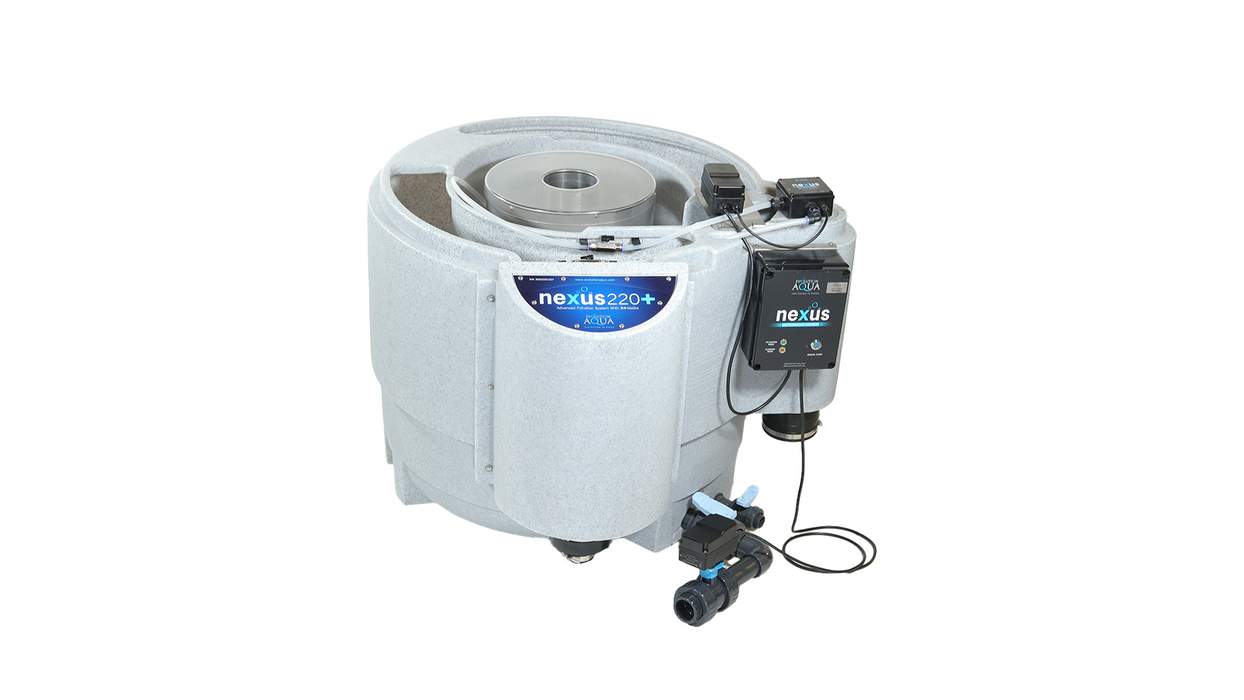

Nexus Automatic Upgrade Kit 220/320 (Pump Fed)

Nexus Automatic Upgrade Kit 220/320 (Pump Fed)

by Elite Koi
£549.95


Make Nexus the automatic choice

Continuing our long standing reputation for innovation, the Nexus Automatic System now enables Nexus owners to benefit from a fully automated cleaning cycle on their multi award winning Nexus filtration systems. Physically turning ball valves and manually switching pumps on and off will now be a thing of the past thanks to the Nexus Automatic System. All of the key processes that form the cleaning cycle are now controlled automatically with this easy to install kit.


Pump Fed Setups








Overview

The Nexus Automatic System can be installed on Nexus 220 and
320 filters manufactured after 2006, whether on gravity-fed or
pump-fed installations.
The kit includes a control box which connects up to an automated
waste valve, airpump control box and an automatic inlet slide plate
(for gravity fed models only). Once installed and connected to your
pond pump and mains power the system will carry out cleaning
cycles at timed intervals or when pressing the manual clean button.



Cleaning Cycle



The Nexus Automatic System will control the cleaning cycle fully automatically. Cleaning is done on a timer, which is factory set to clean once every 3 days, however, this is easily adjustable to fit in with your pond requirements. The Nexus Automatic System will run a cleaning cycle which lasts approximately 10 minutes.





Pump Fed Cleaning Cycle

■ Adjustable timer kicks in to start a cleaning cycle.

■ Control box automatically switches circulating pump off.

■ The water level in the Nexus equalises

■ Air is diverted from the outer bio-chamber to the Eazy to clean the media.

■ After the media inside the Eazy has been cleaned, the automated waste valve opens.

■ Eazy is drained to waste.

■ The automated waste valve closes.

■ Air is diverted back from the Eazy to the biochamber.

■ Circulating pump is switched back on.

■ Nexus returns to filtration mode.removed if needed with the K1 Micro in place. This added feature is ideal when undertaking further maintenance.

Nexus Auto


The generally accepted practice is that when you keep ornamental fish, whether in a pond or in an aquarium, to keep the water fresh, 10% of the volume of the water in the pond/aquarium should be changed on a weekly basis. With this in mind, we recommend that you set your Nexus Automatic system to run a cleaning cycle so as to exchange water in line with this.general parameters of our ponds is turn over rate. This is the time that it takes for the total volume of the pond to pass through the filter system once. We recommend that for ideal performance a turn over rate of every 2 to 3 hours is found to be best.
